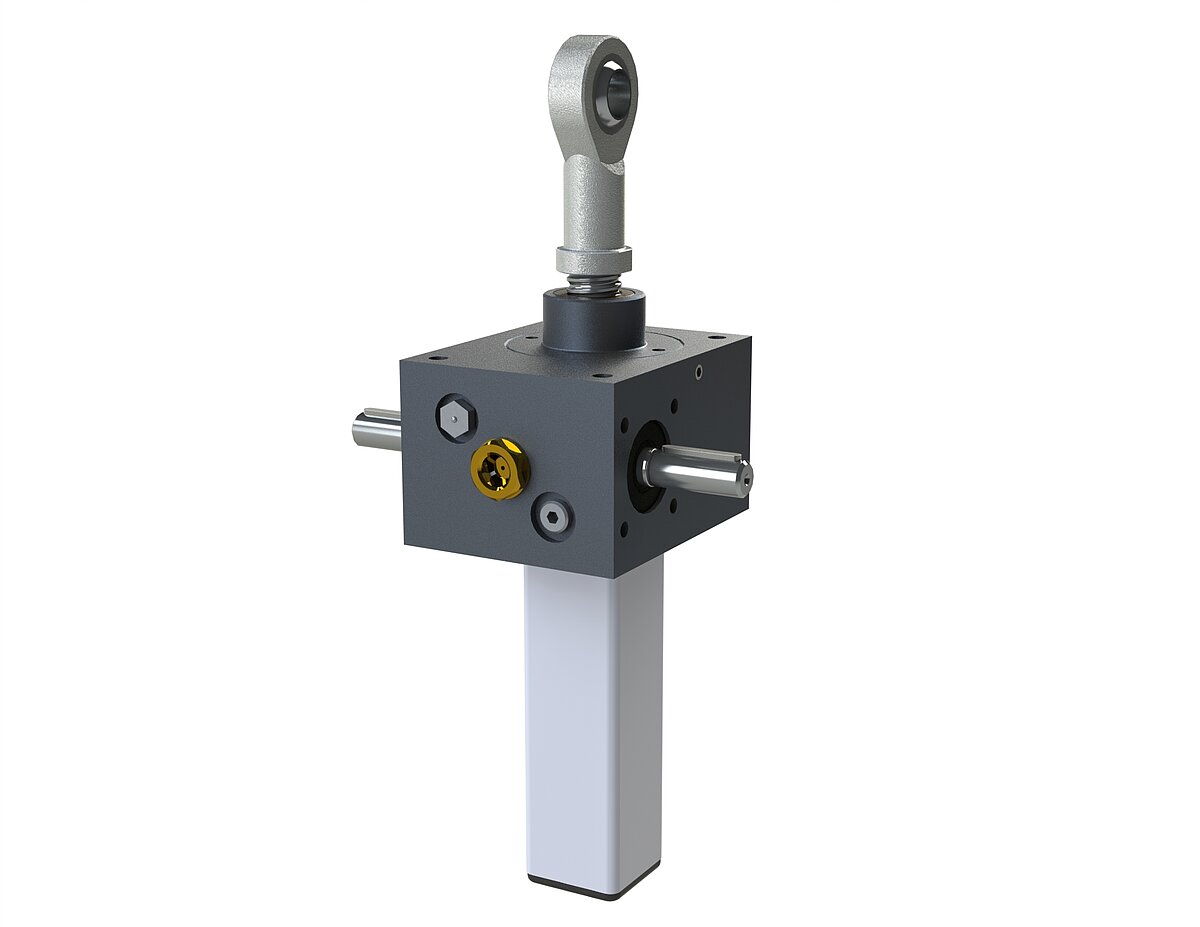

Type VK

Corresponding to Type N, the ball screw with the nut thread implemented in the worm gear is
lead through the gearbox housing. Protection against twisting is achieved by linear bearing in a square protective tube on the gear side.

Application for example, if due to the situation, the ball screw cannot be fixed against rotation.

CAD-Data

For implementing NEFF components in your construction, please use our 3D-configurator.

Download of 2D- or 3D-Models is possible in different formats.
