Cardan Adapters (KA-ZL-CD, KA-ZQ-AB)

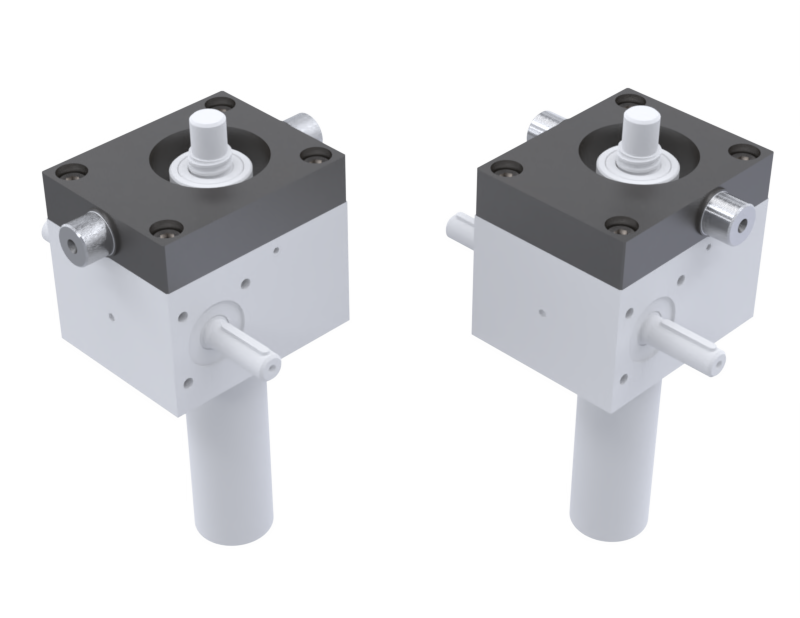

For conceptual formulations with screw jacks rotatable about an axis cardan adapters of the series KA are available. Depending on the turn direction there are two different designs available.

With the axis of rotation parallel to the driveshaft the type KA-ZQ-AB is to be used. With the axis of rotation at right angles to the drive shaft the type KA-ZL-CD is to be used.

Please specify standard fitting E, mounting side F.
